Add Readings to a Test
Applies to FieldLab Mobile versions 2.0 and later.
This walkthrough demonstrates how to add one pressure reading. You can add as many readings to a test as needed by repeating the steps below.

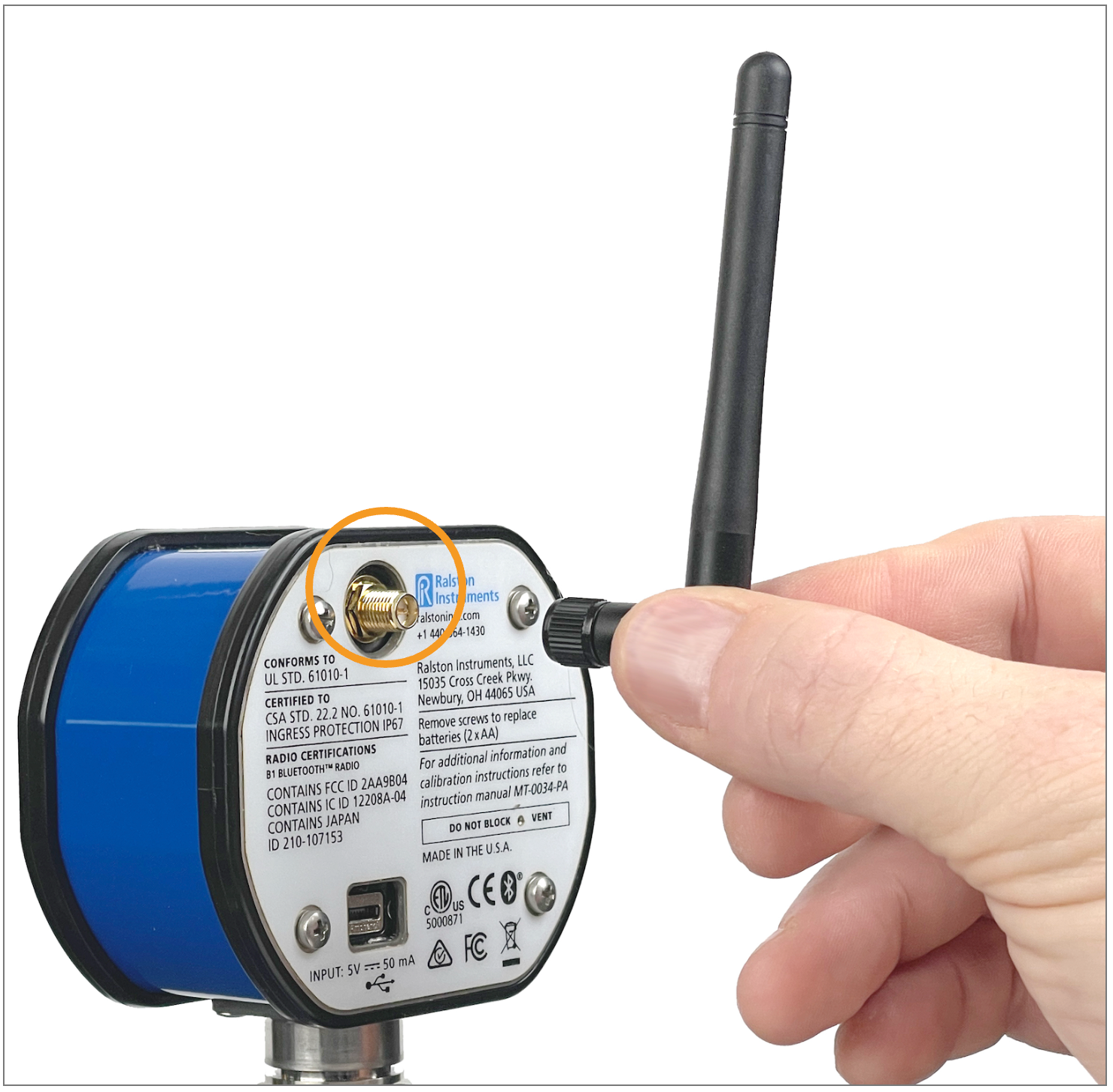

1. Connect the included Bluetooth antenna(s) to the gauge(s) you need to use for the test.

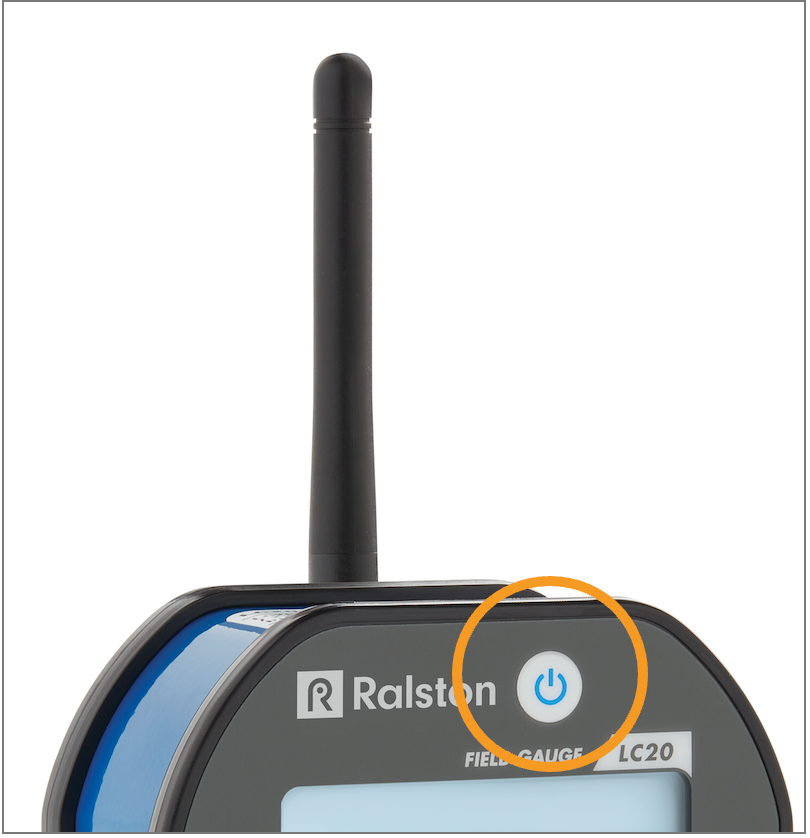

2. Power on the gauge(s).

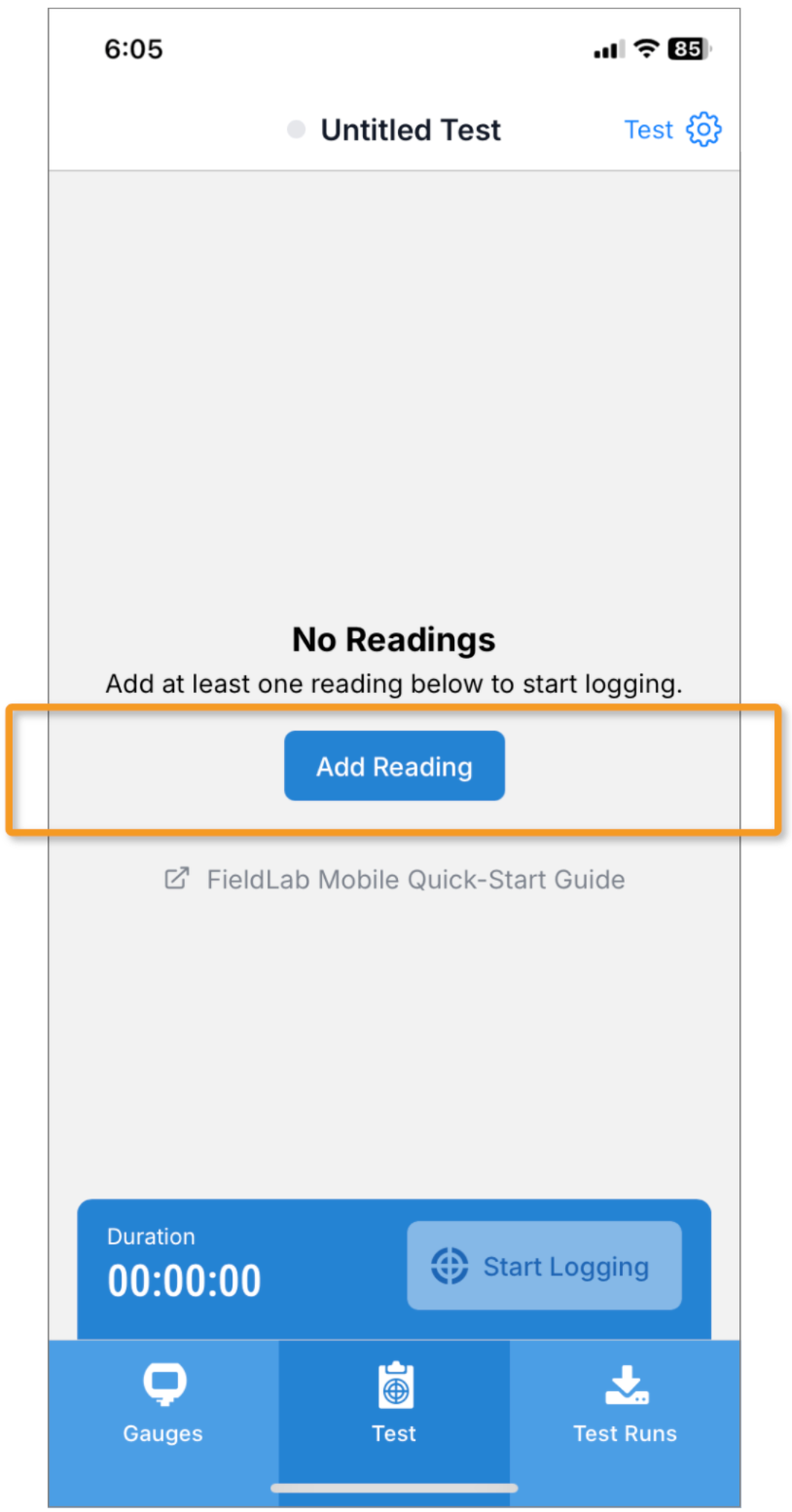

3. Tap Add Reading

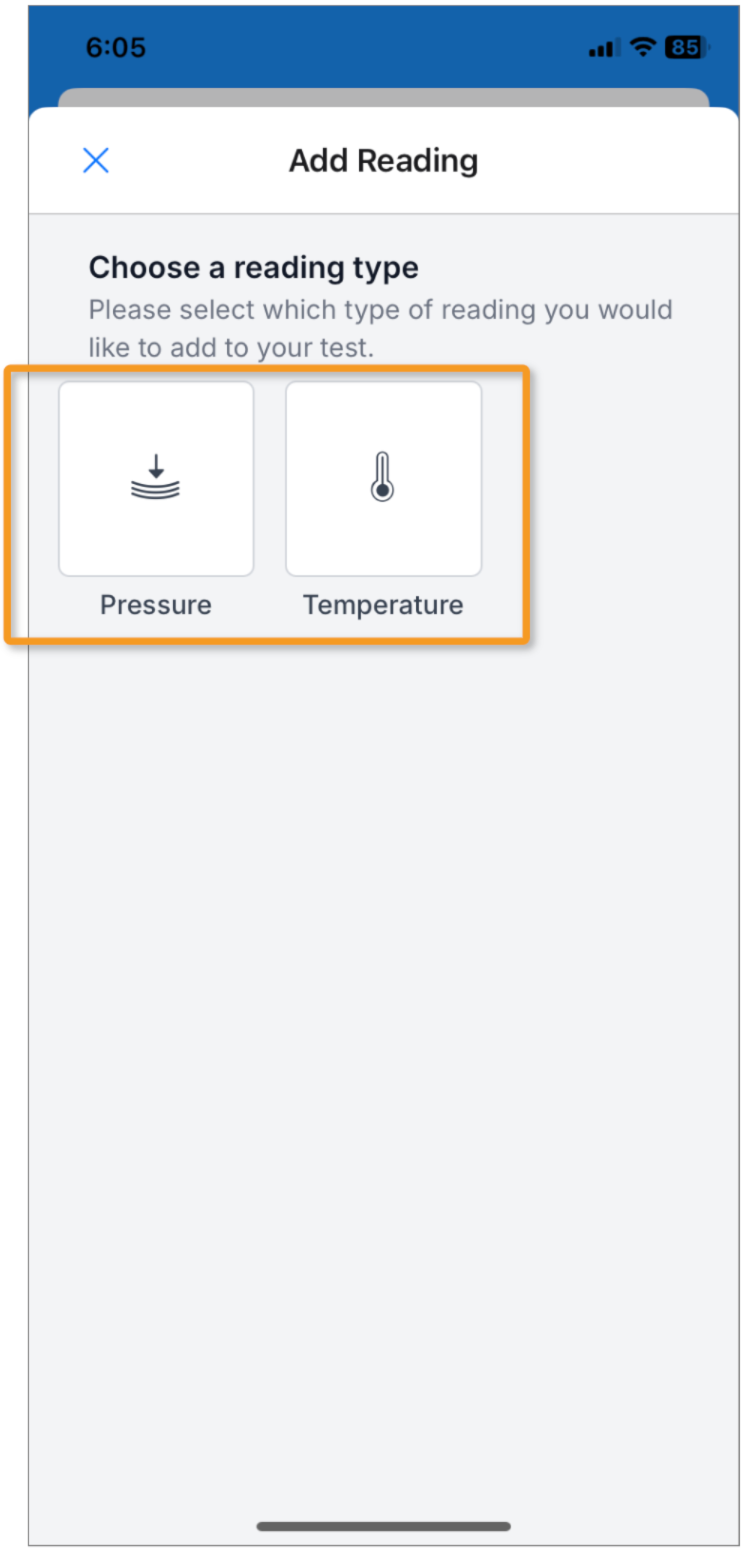

4. Choose the reading type
Tap Pressure or Temperature

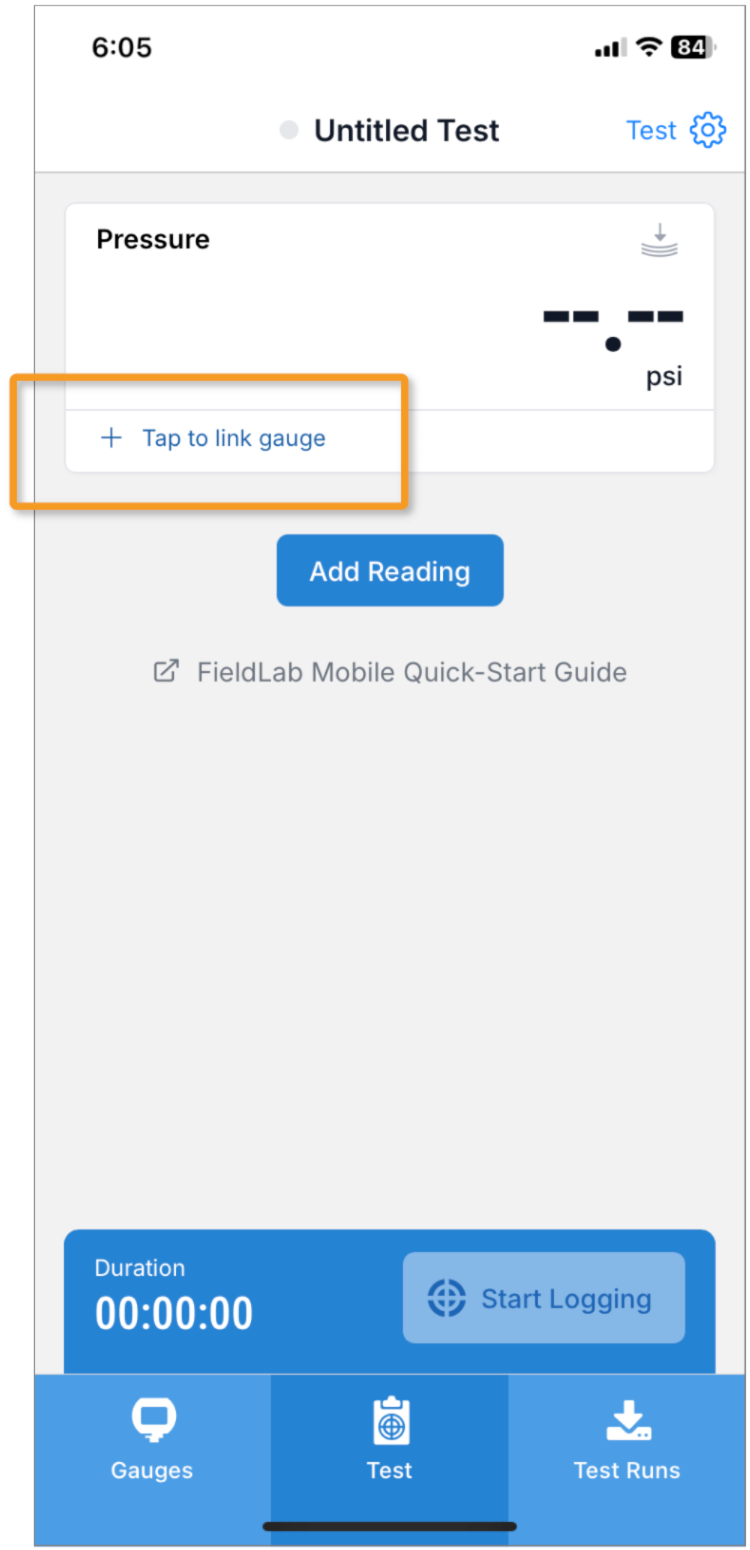

5. Tap "Tap to link gauge"

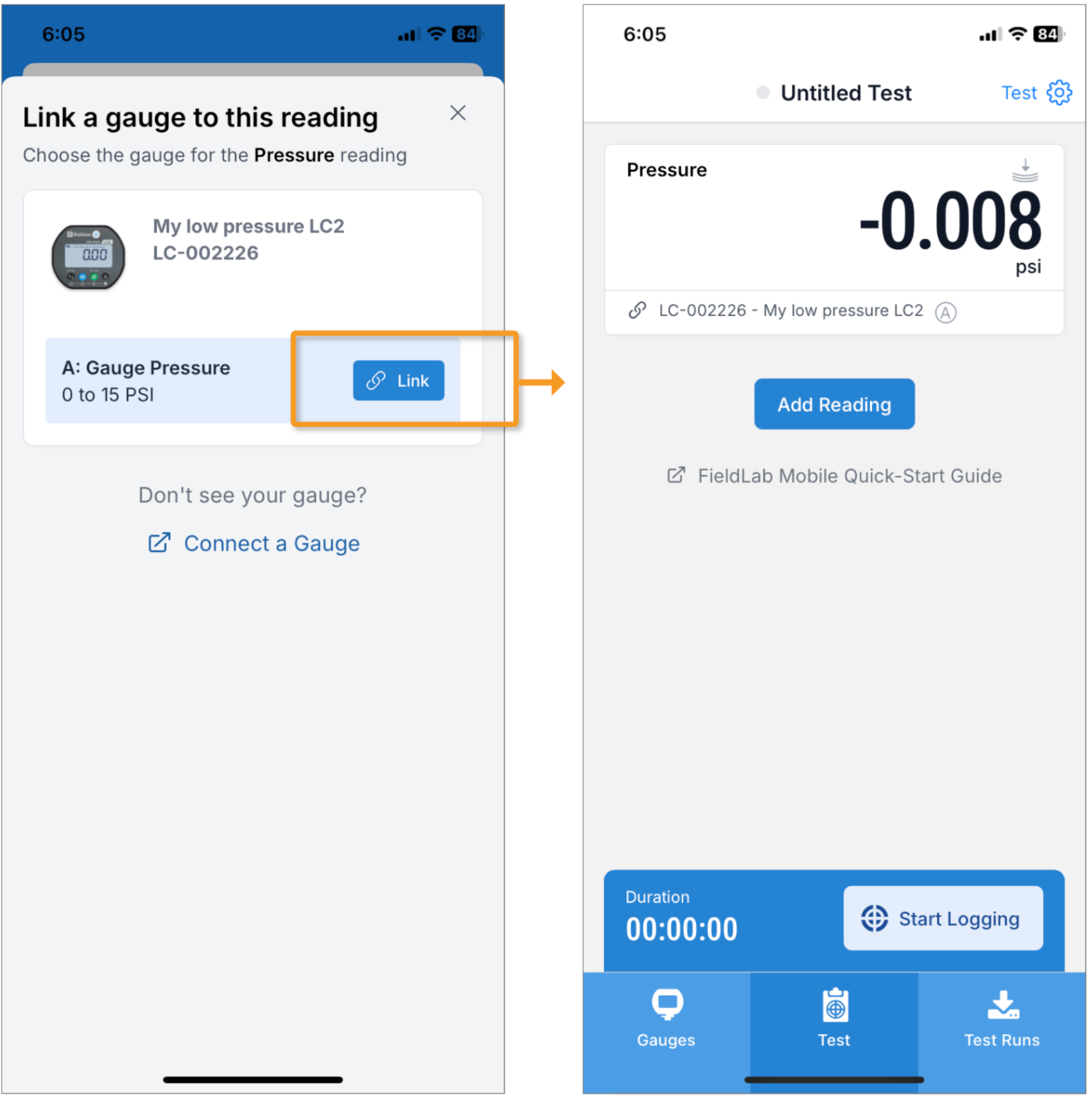

6. Tap Link
All nearby and available gauges will appear on this screen. For this walkthrough, we have one gauge powered on and nearby.
After you Link, your gauge will appear on the Test screen and display live readings.
Repeat steps 3 through 6 for each reading you need to use in your test.
