Adjust settings for Auto Power Off for a FieldLab Pressure Calibrator while in Manual Mode

Use FieldLab Desktop to adjust the length of time before the FieldLab automatically Powers Off off to conserve battery life.

Each Test Mode, including Manual Mode, has its own Auto Power Off settings. When you Activate a Test Mode on the FieldLab, the settings for that Test Mode will apply to the FieldLab as long as that Test Mode is active.

1

Open FieldLab Desktop on your computer.

2

Plug the FieldLab into your computer with the provided USB Cord and Power it On.

3

On the FieldLabs screen, select the FieldLab you'd like to adjust the settings for.

4

Select the Settings Tab

5

In the Manual Mode section, select the Change Button.

6

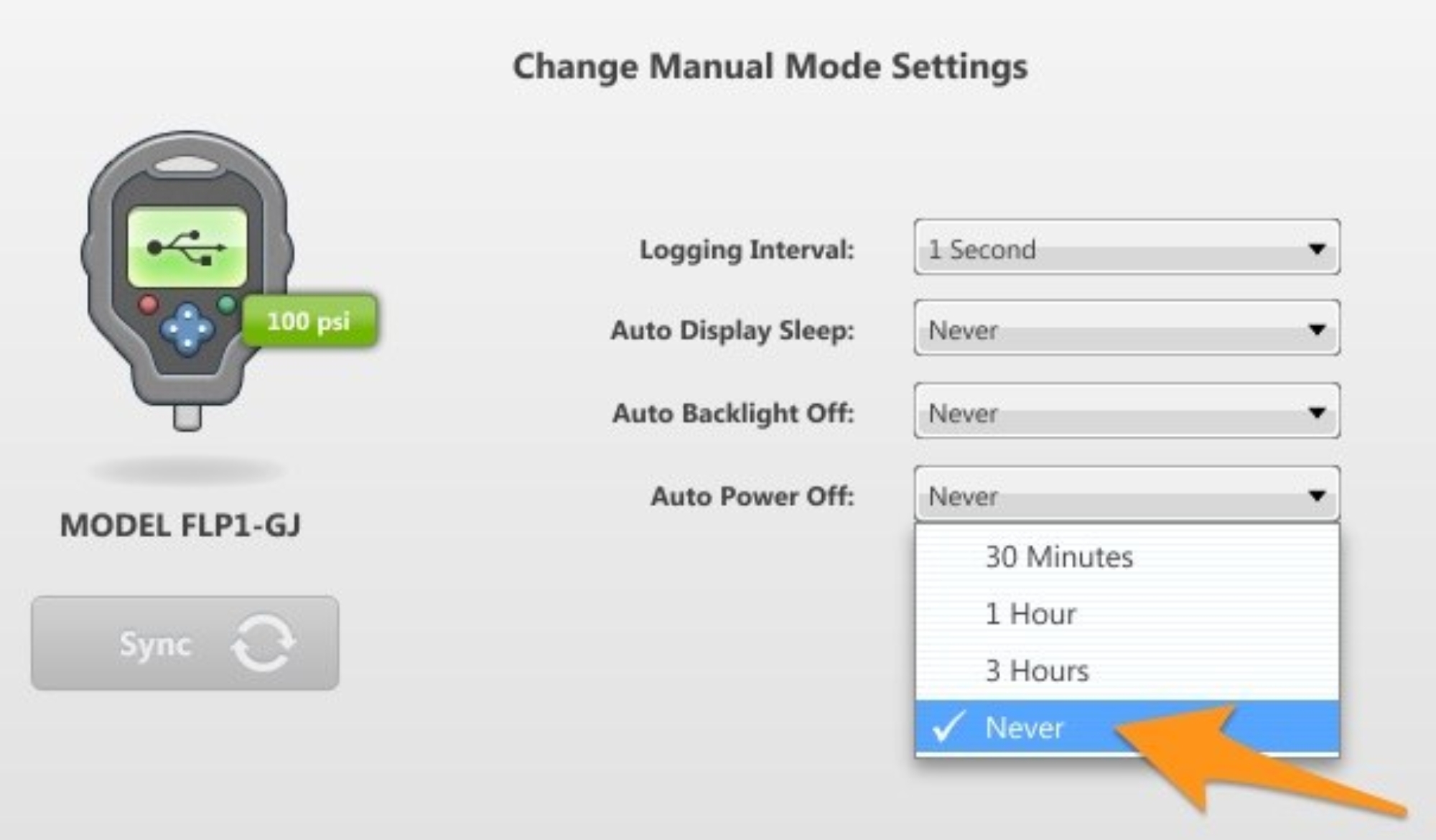

Adjust the Auto Power Off settings.

7

Save your changes by selecting the Save Changes button.
