Change Last and Next Calibration Dates on a FieldLab

Customize the last and/or next calibration date on a FieldLab.

1

Plug the FieldLab Pressure into the computer with the provided USB cord, power it on and open FieldLab Desktop software.

2

Select the FieldLab device you wish to change on the Devices screen.

3

Select the Sensors Tab

4

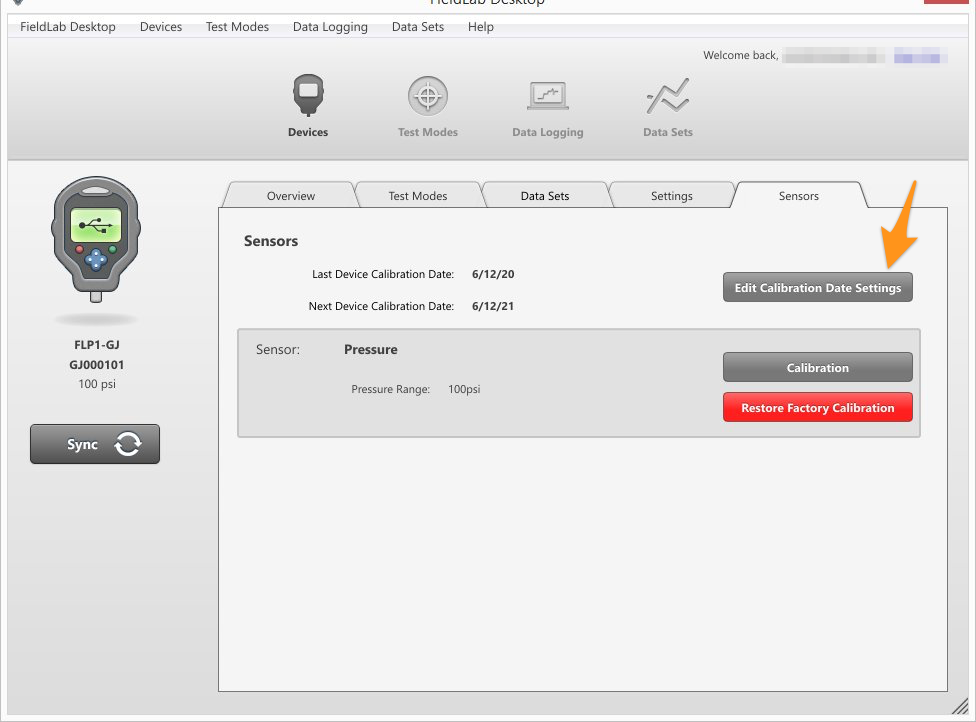

Select the Edit Calibration Date Settings button.

5

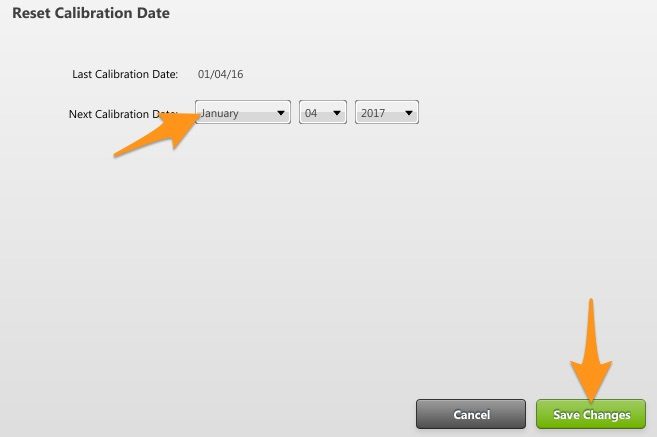

Revise the calibration dates as desired and select Save Changes button.
