Change Logging Interval

Change Logging Interval

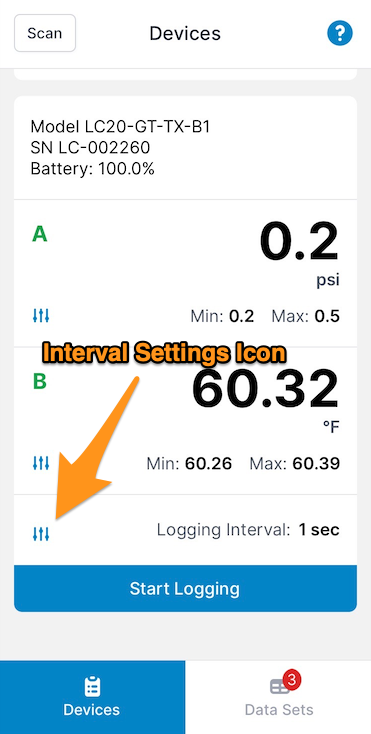

1. Select the Interval Settings Icon in the Logging Interval field.

Note: Logging Interval Settings cannot be changed while logging.

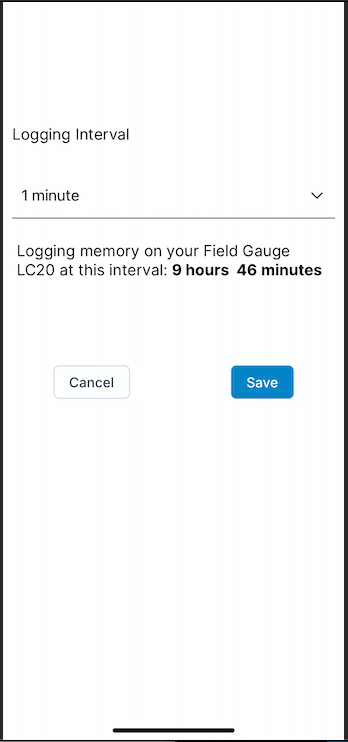

2. Select the drop-down menu to choose your new Logging Interval.

Note that longer intervals will give you more time to log data before the memory is full on your Field Gauge. The FieldLab Mobile App will give you a preview of how much logging time is available for each interval setting.


3. Select the Save button to save your changes.
