Export Data Sets from FieldLab Mobile App

Export Data Sets from FieldLab Mobile App


This article is for FieldLab Mobile App versions 1.5.1 and later

Review test data

1. Select the Data Sets tab.
2. Select the Data Set you wish to view from the list.

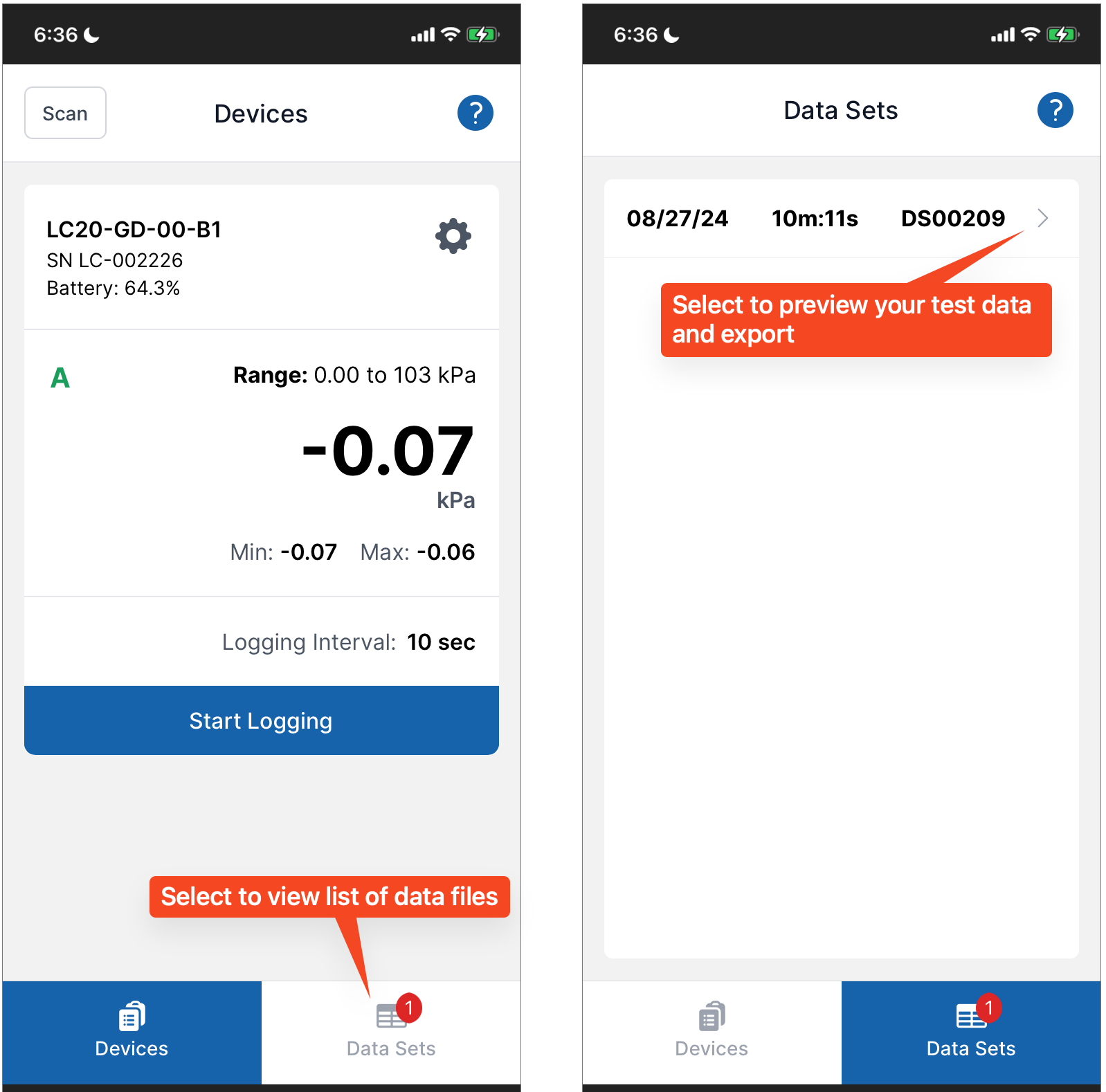

View list of saved data sets

The Data Set Overview screen will display key information about your test.

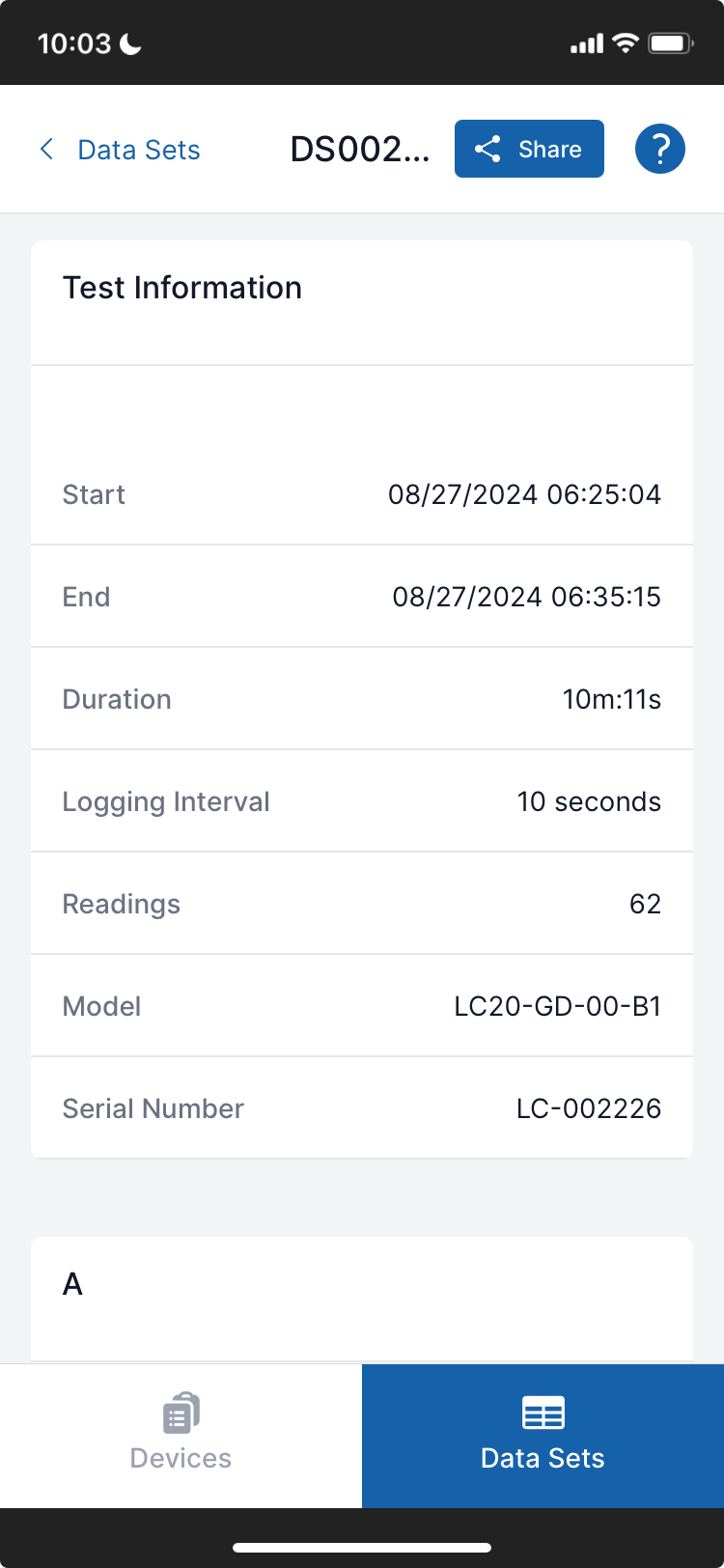

Example of a test overview screen

View entire Dataset
Scroll to the bottom of the Data Set overview screen and select View Dataset button to see every logged point in your data file.

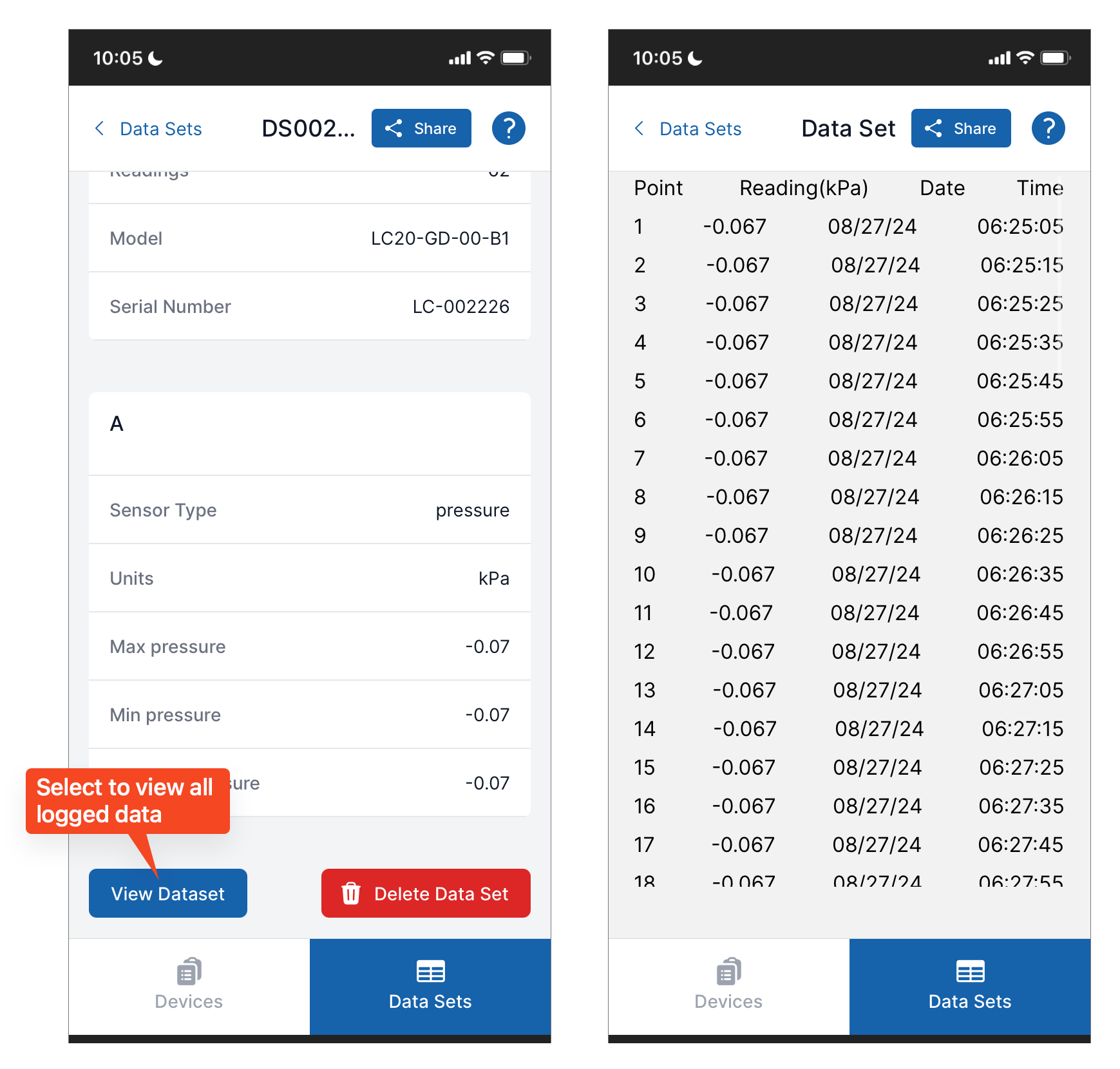

View every logged point in a data set within the FieldLab Mobile App

Export Test Data

When you share your data set it will be exported in .csv format.

Select the Share button to access the array of sharing options offered by the operating system on your mobile device. The sharing options available depend on your mobile device operating system and what Apps you have installed.
Here are some common examples of the options that may be available to you:
  1. Google Drive
  2. Microsoft OneDrive
  3. email attachment
  4. Text message attachment

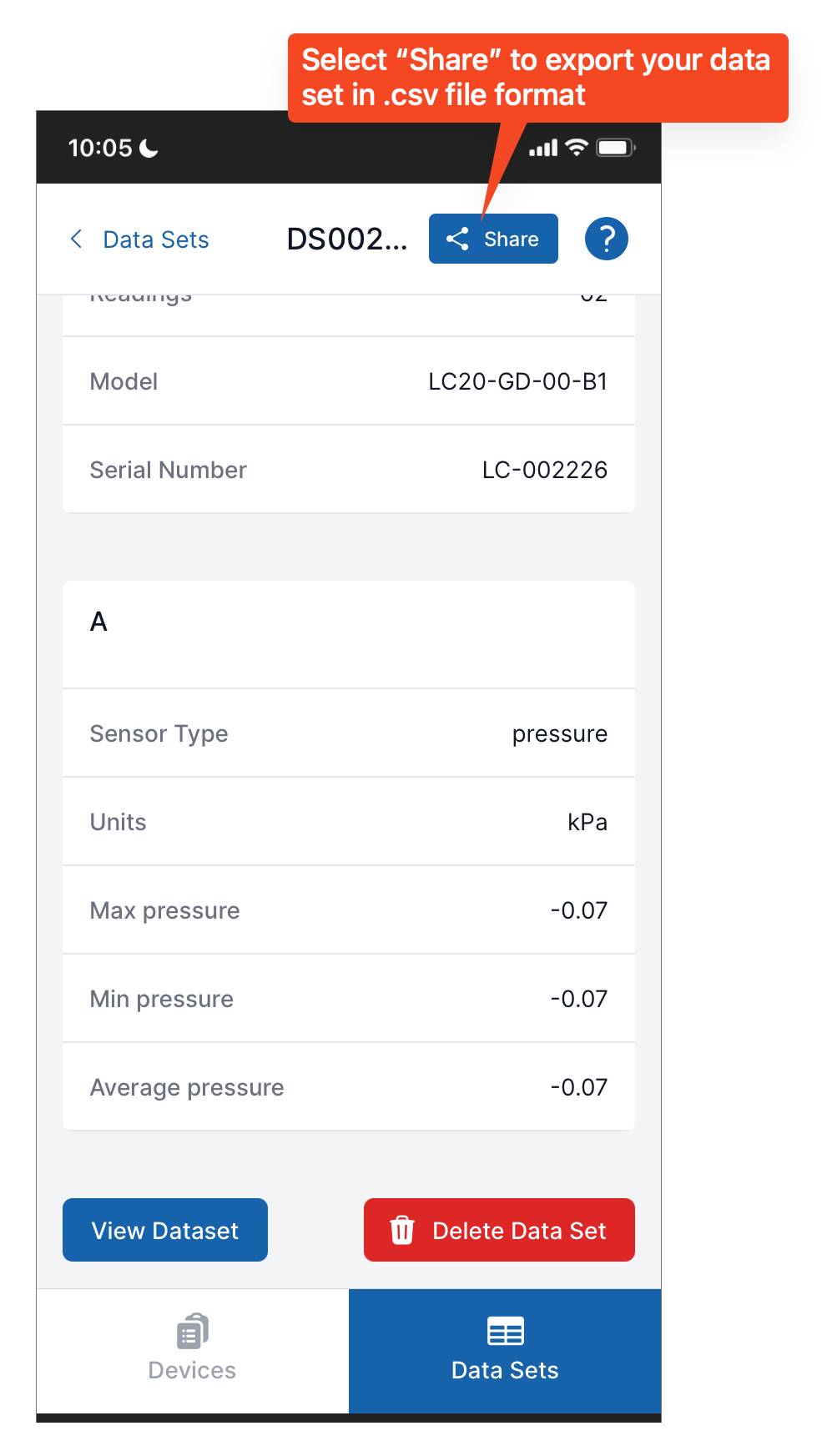

Share data sets from FieldLab Mobile App
