How to tell if your Field Gauge model can communicate wirelessly with Bluetooth

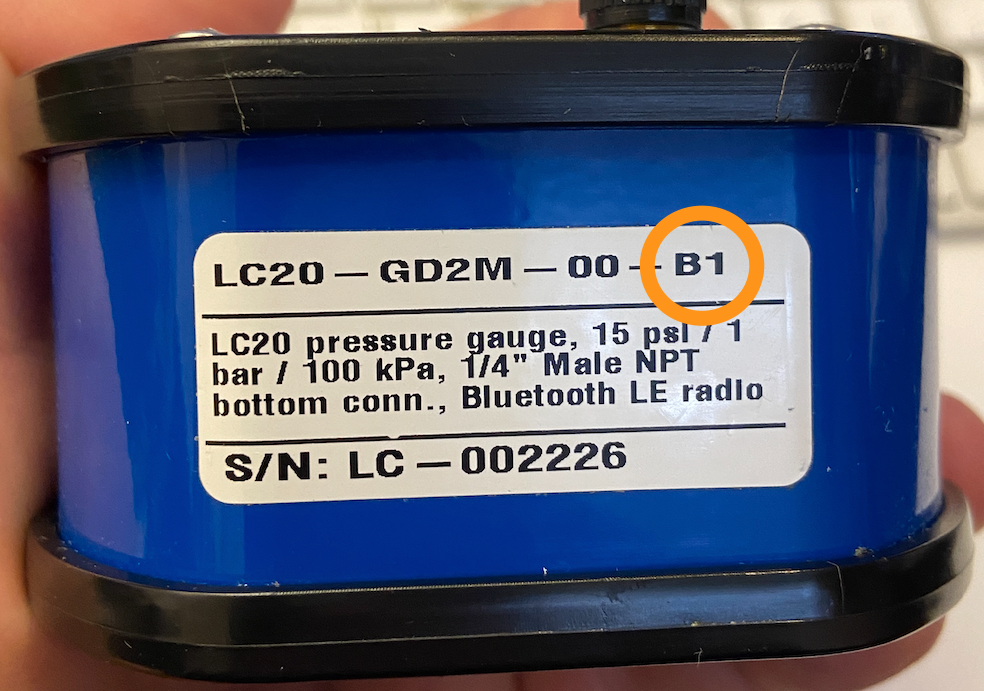

Many customers own multiple Field Gauges, each with different configurations and features. A quick way to determine if your gauge is Bluetooth enabled: Check the last two characters in the model number printed on the gauge. If they are "B1", the gauge can communicate wirelessly with Bluetooth.
What can you do with a Bluetooth enabled Field Gauge?
Use the free Ralston FieldLab Mobile and FieldLab Desktop Apps to remote control logging, monitor live readings, harvest test data, and export test data. Learn how to get started with FieldLab Mobile.
