Import Data Sets from a FieldLab Digital Pressure Calibrator

What you will need

1. The FieldLab Desktop app installed on your PC. Free download.

2. A FieldLab with data sets saved to it.

3. USB cord to connect the FieldLab to your PC (included with purchase of FieldLab).


1. Power On the FieldLab.

2. Open the FieldLab Desktop app on your PC.

3. Connect the FieldLab to your PC with the provided USB cord.

4. In FieldLab Desktop, on the Devices screen, select the FieldLab that you want to import data sets from.

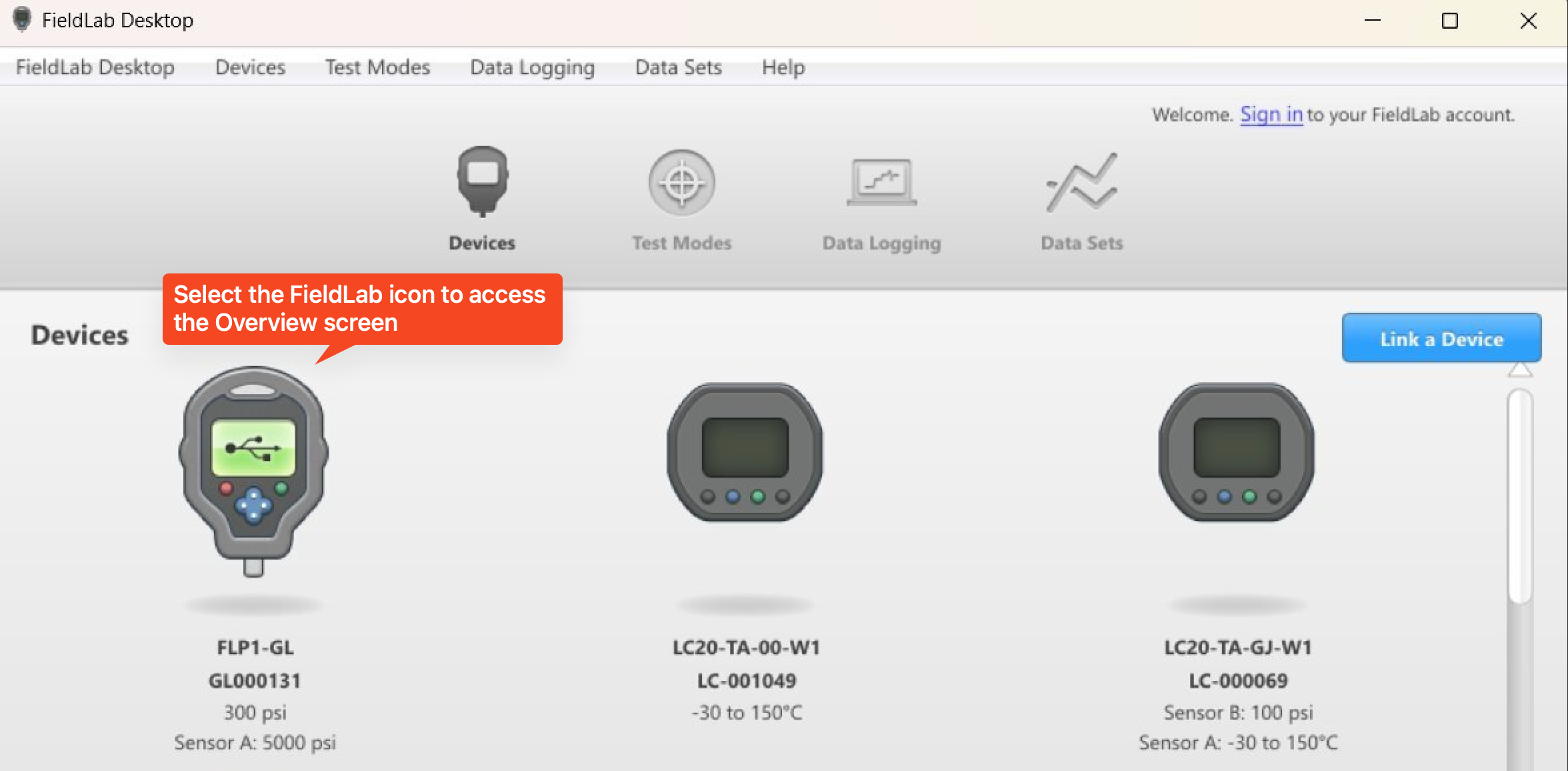

Select the FieldLab icon to access the Overview screen for your gauge

5. Select the Data Sets Tab.

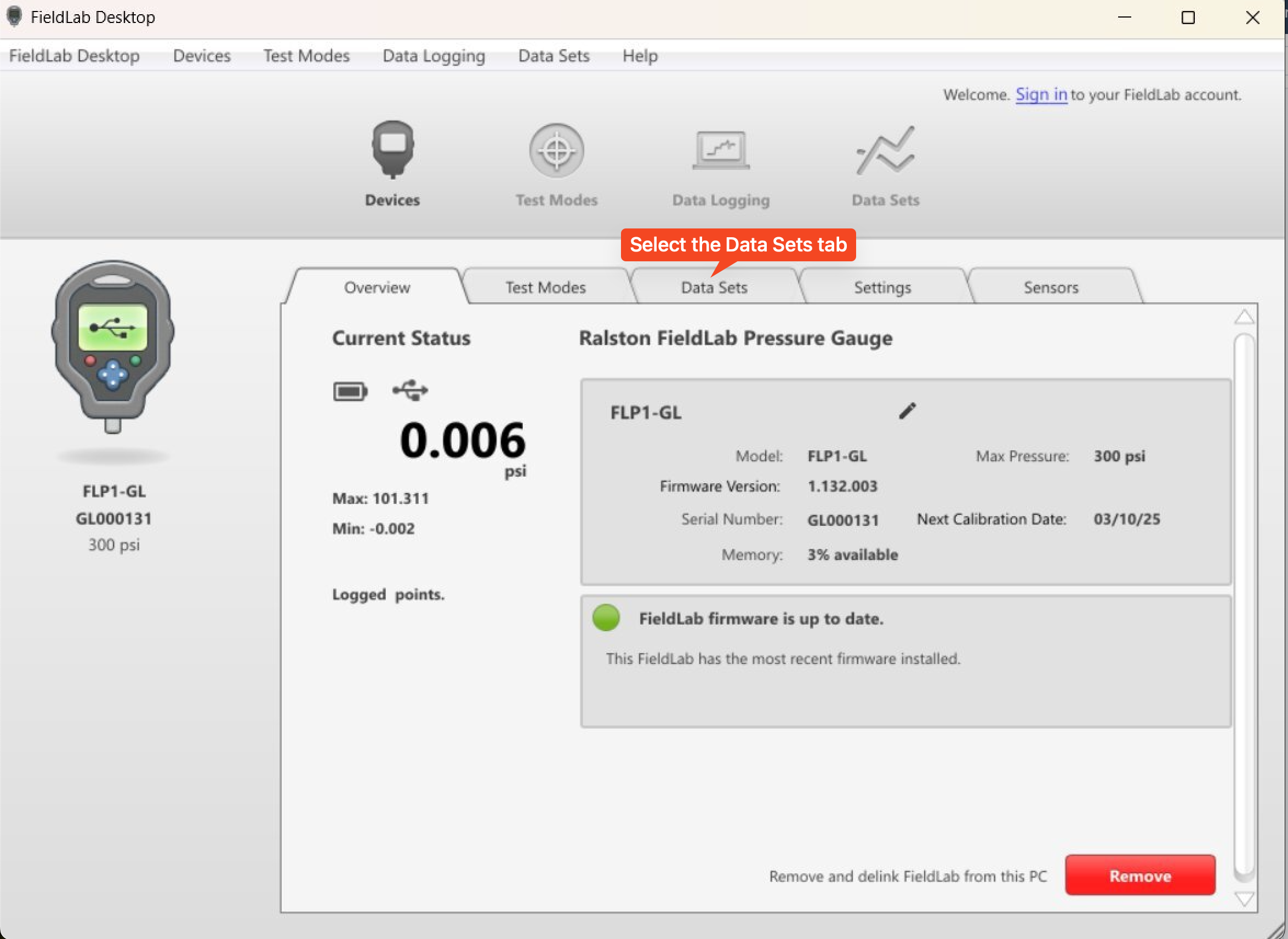

Select the Data Sets tab to view data saved to your Fieldlab

6. Import Data Sets from FieldLab to the FieldLab Desktop app.

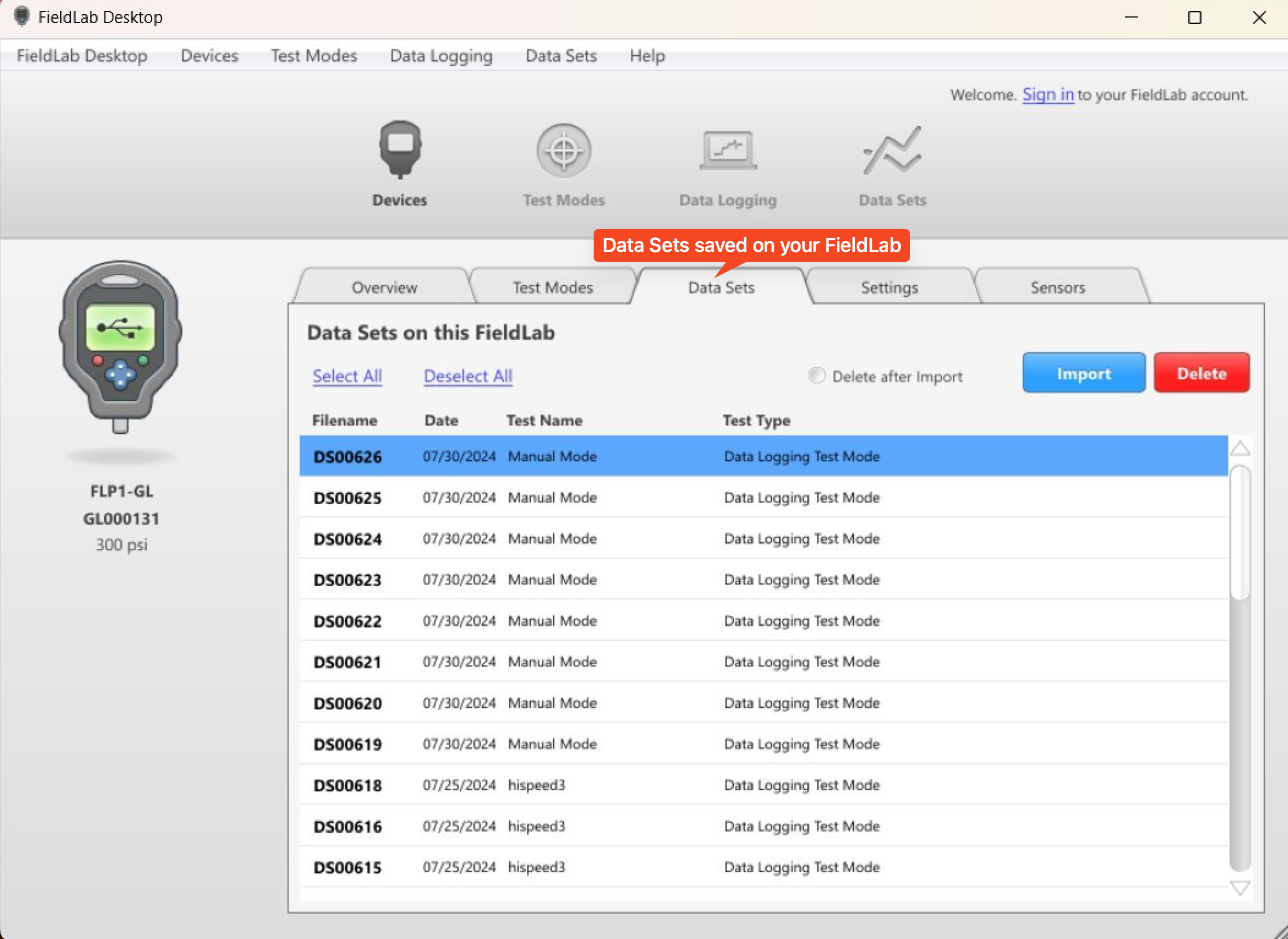

Select the data files you want to import. Select the Import button to save the data files to the FieldLab Desktop App.

Manage Data Sets saved to your FieldLab from the Data Sets tab in the FieldLab Desktop App.

7. View imported Data Sets

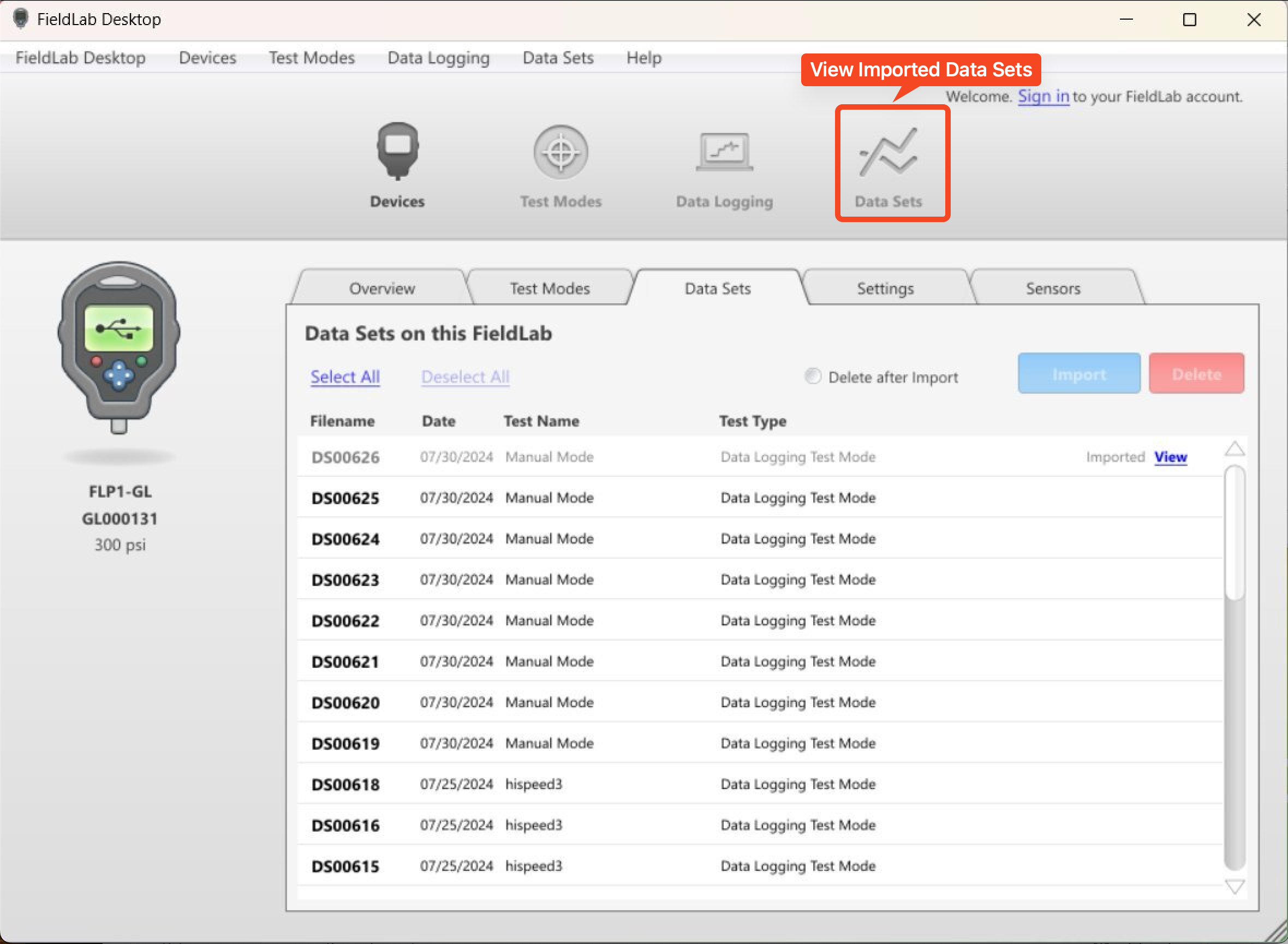

Select the Data Sets button at the top of the screen to view all data sets that have been imported to FieldLab Desktop.

Select the main Data Sets button to view all data sets that have been imported into the FieldLab Desktop App.

8. Review, Export, or Delete Data Sets that have been imported to FieldLab Desktop

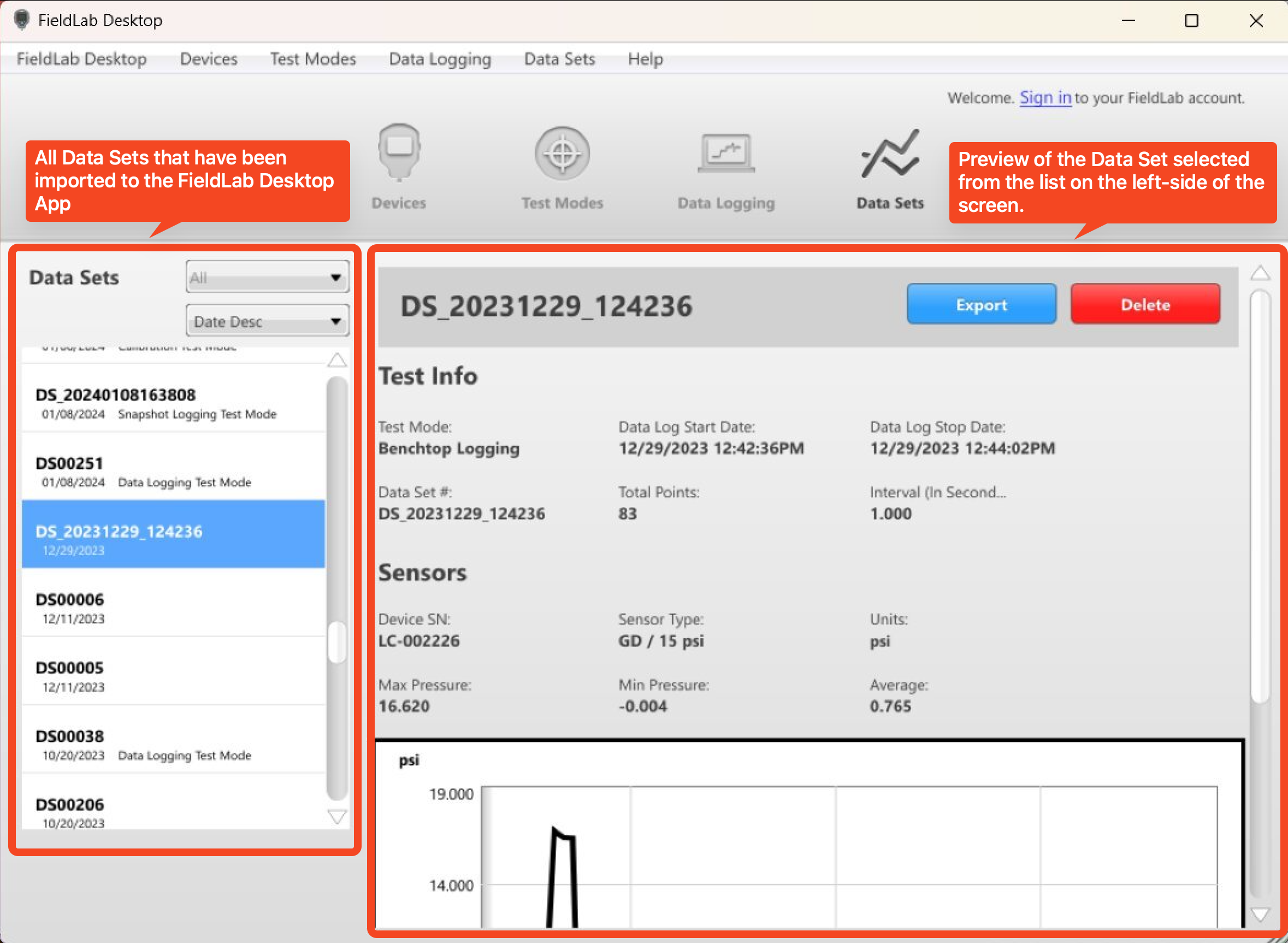

Overview of the main Data Set management section of the FieldLab Desktop App.
