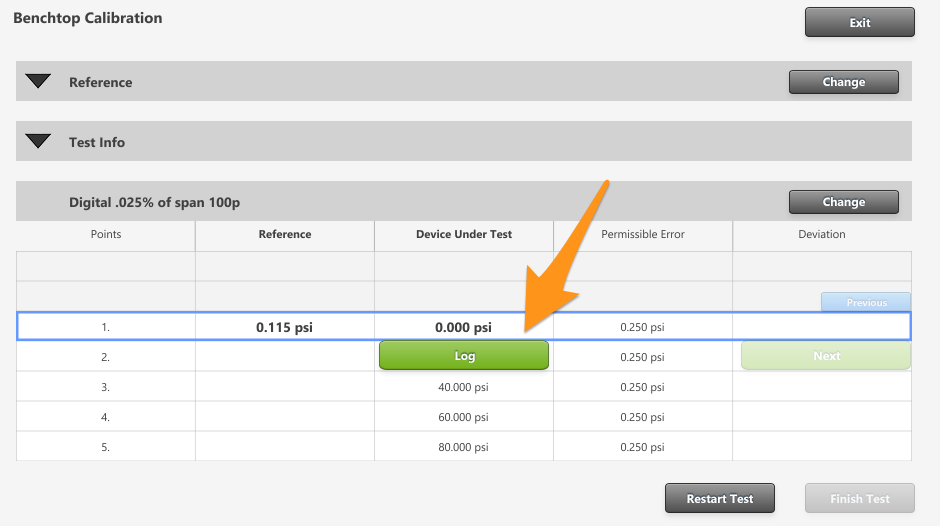

Press the Space Bar to log a point

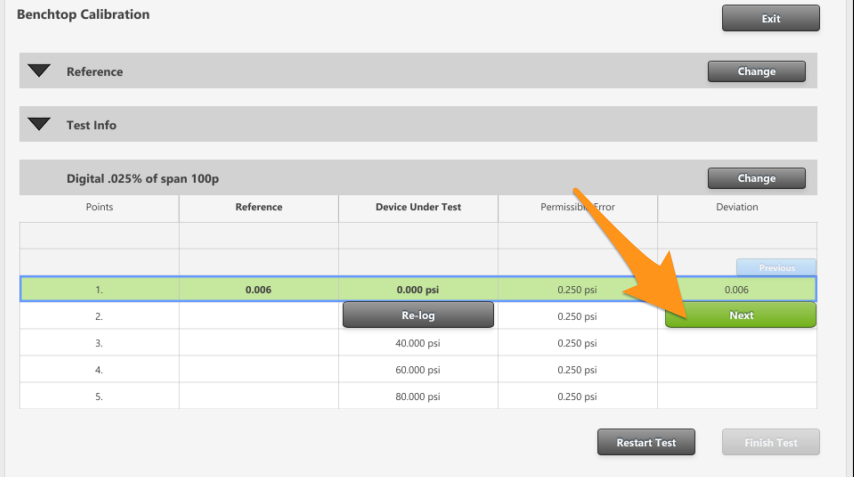

Press the Return Key on your keyboard to advance to the next point
Speed up your Benchtop Calibration tests by using keyboard shortcuts
Make your benchtop calibration tests go even faster by using keyboard shortcuts to log each point and advance to the next point.
