Toggle sensor reading displayed on screen with a two-sensor Field Gauge LC20 and Process Meter LC30

1

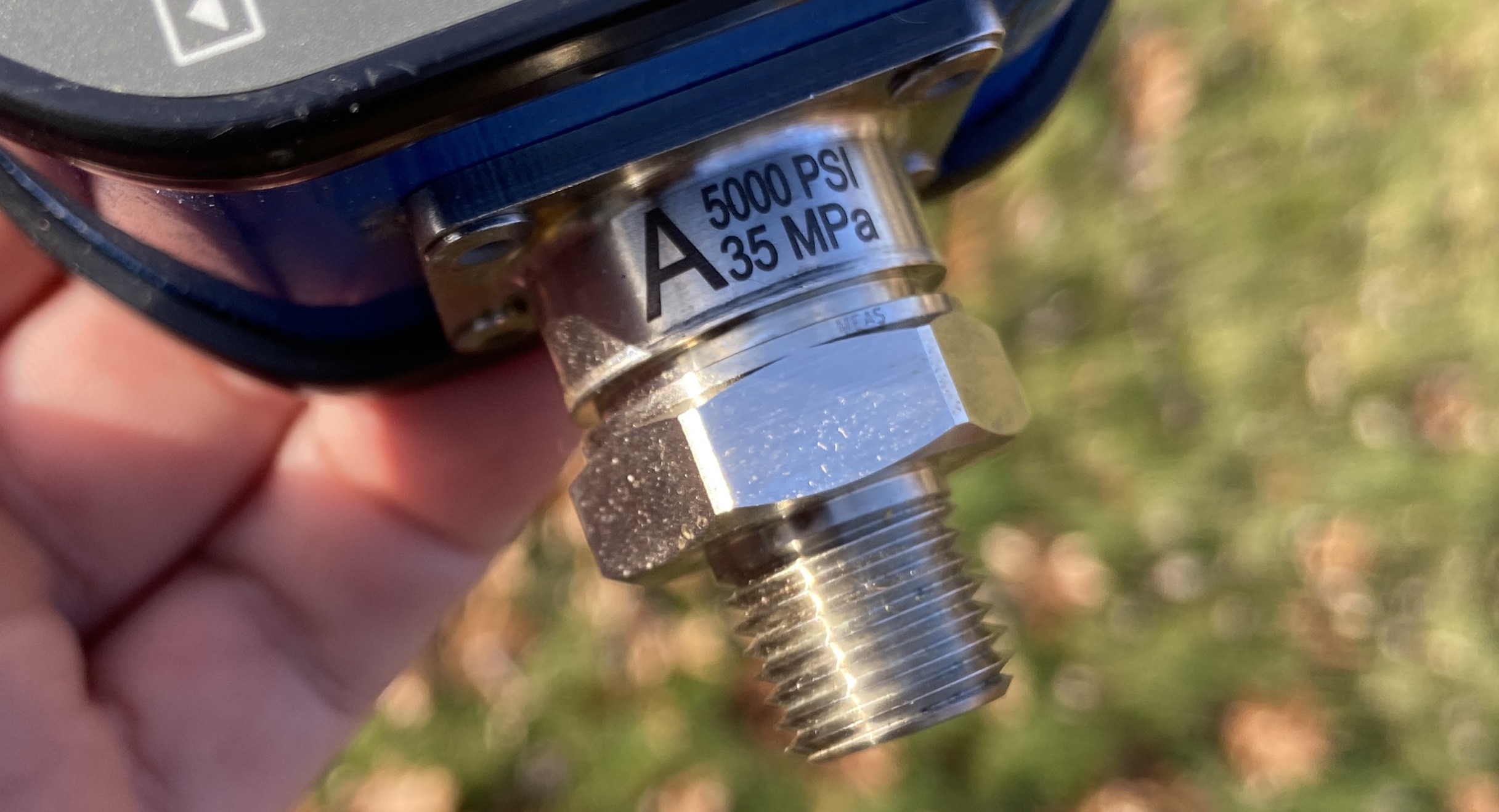

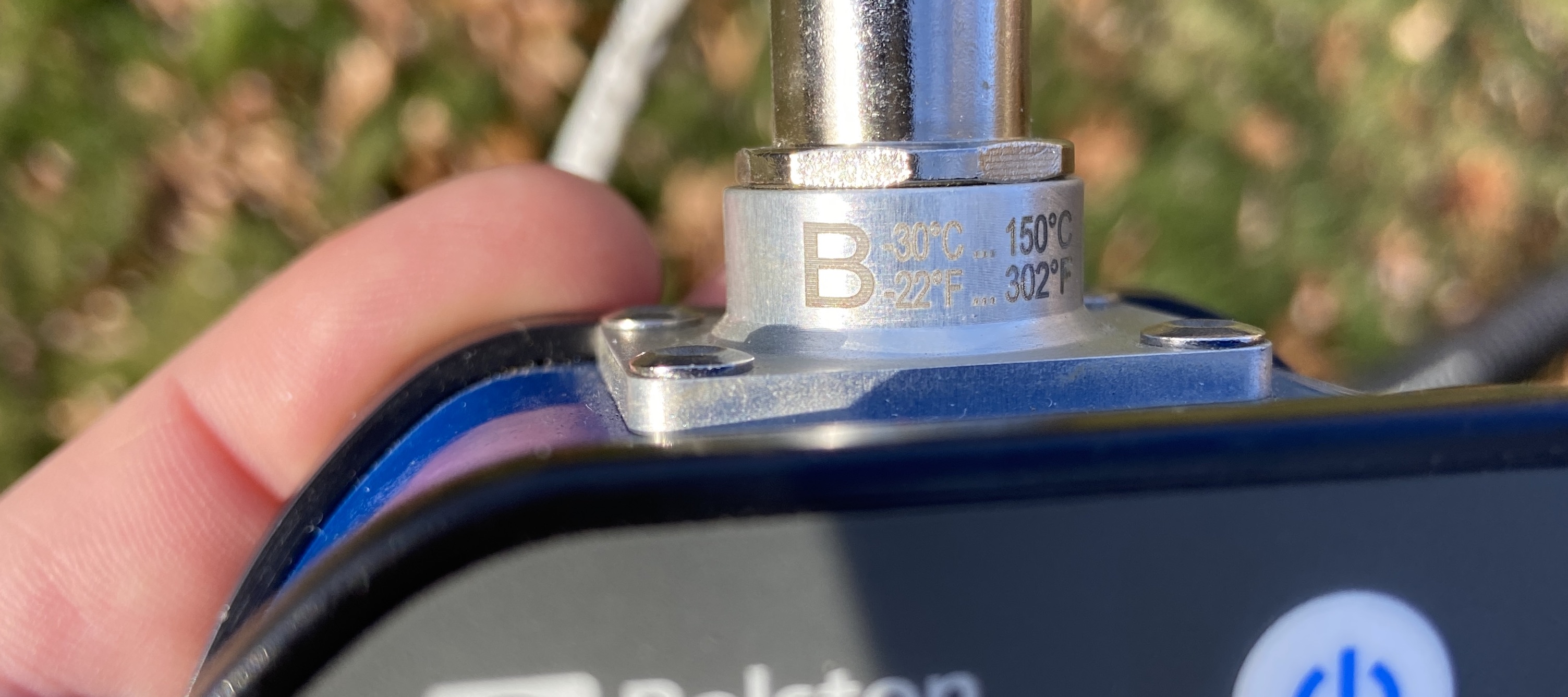

Each sensor on a dual-sensor gauge will have a laser-etched label (A and B).

The Field Gauge and Process Meter screen displays the readings for one sensor at a time.

To change which sensor is being displayed, tap the Menu / Up Arrow button.
