Connect one or more Ralston gauges to FieldLab Desktop App with Bluetooth

What you will need:

  1. One or more Bluetooth-enabled Ralston Gauge. How to tell if your Field Gauge has Bluetooth.
  2. The FieldLab Desktop app installed on your Windows computer. Version 1.40.4 or laterUpdate FieldLab Desktop to the Latest Version.

1. Link the gauge to FieldLab Desktop if you haven't done so already.
2. Go to the Devices screen in the FieldLab Desktop app on your computer.

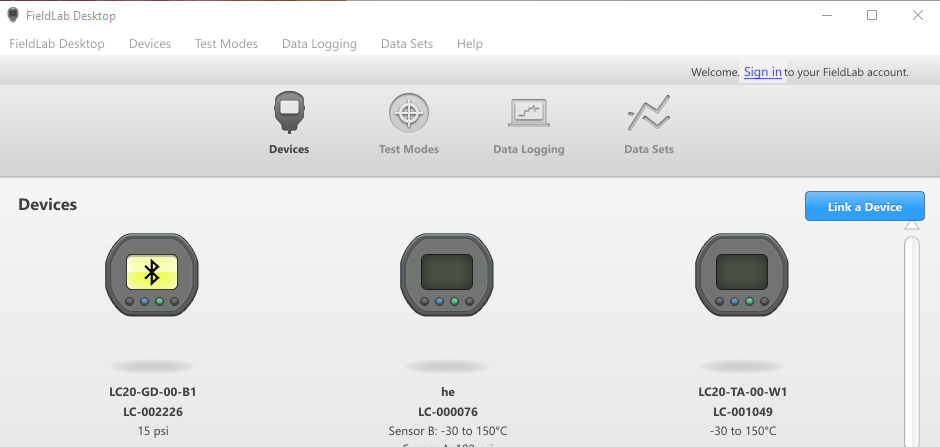

3. All Linked, powered-on Bluetooth-enabled gauges will appear on the Devices screen as available for connection indicated by a Bluetooth icon with a yellow background.

4. Select the gauge you want to connect on the Devices screen.
5. Select' Connect' in the Overview Tab for the gauge.
