Find the serial number and model for your Field Gauge LC20

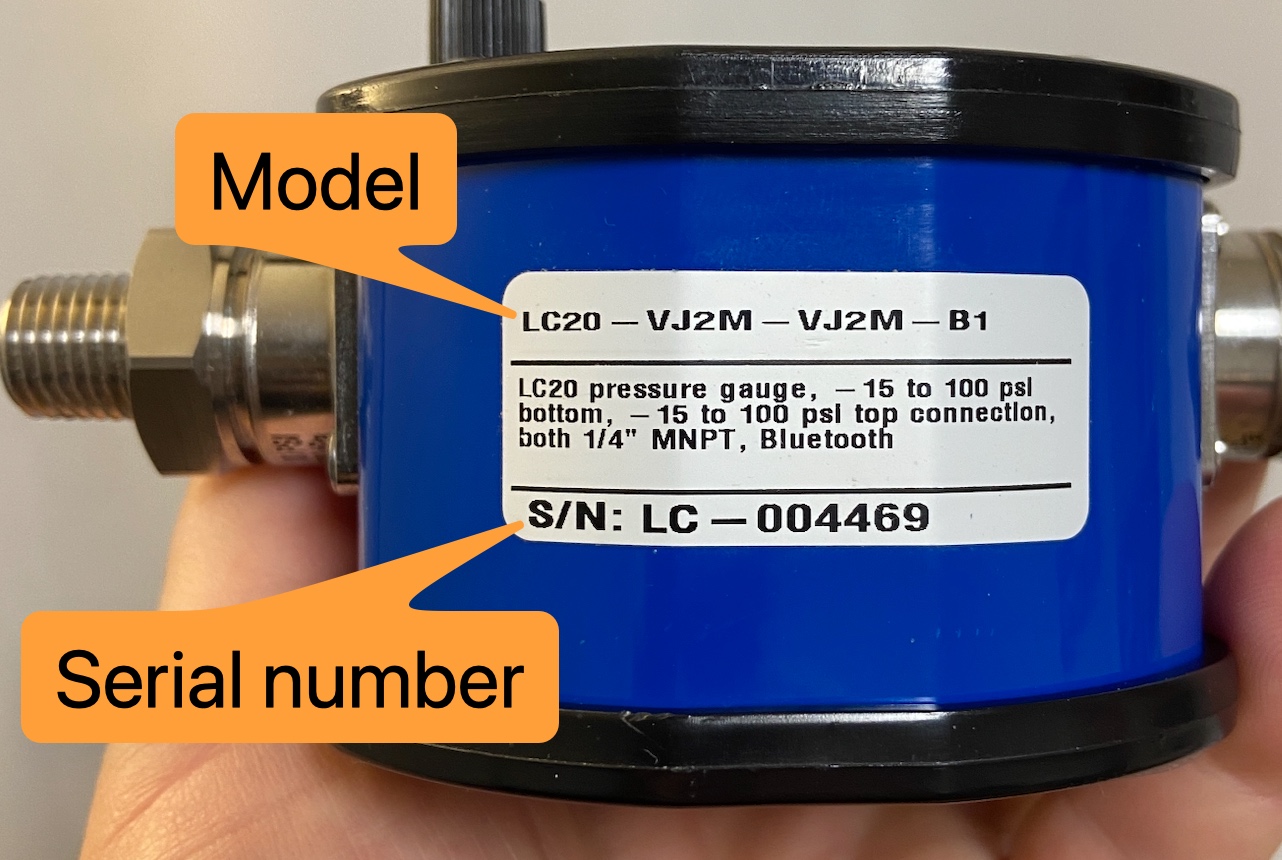

Located on the external casing of your Field Gauge
All Field Gauge LC20s are shipped with a custom sticker that contains the following information.
- Model Number. Model numbers ending in B1 or W1 indicate the gauge has a wireless radio installed. B1 = Bluetooth, W1 = Zigbee.
- A descriptor section with the following info about your gauge:
- Max pressure for each included pressure port
- Connection type for each pressure and/or temperature port
- Wireless radio type, if installed.
- Serial number
If your sticker has been removed, become unreadable, or covered by a protective boot, you can still view your device information using the following methods.
View in FieldLab Desktop Software
- Open FieldLab Desktop on your computer. Download the latest version for free if you don't already have it installed.
- Connect your gauge to FieldLab Desktop with the provided USB cable, or wirelessly if your gauge has a wireless Bluetooth or Zigbee radio installed.
- In FieldLab Desktop, on the Devices screen, select the gauge.

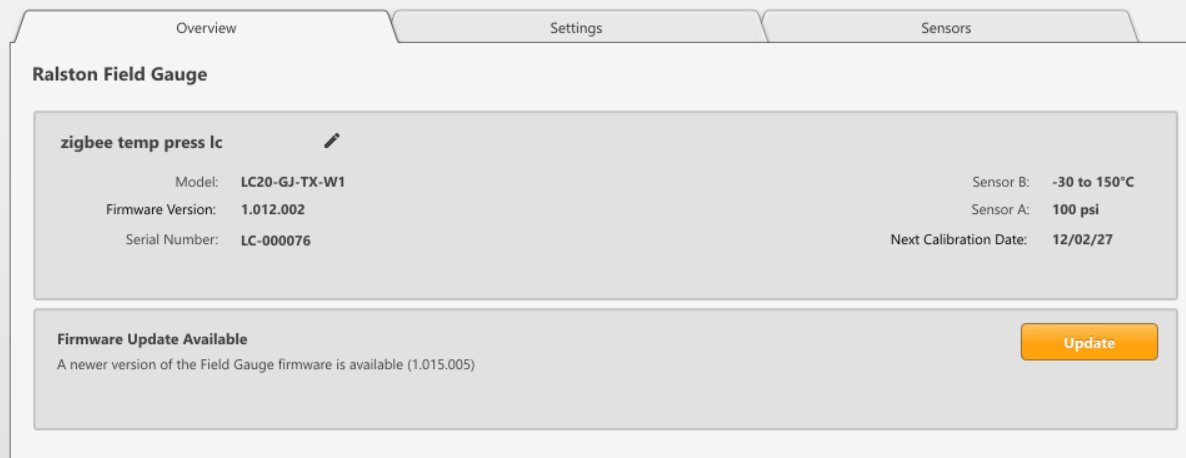

- Find your your model and serial number on the Overview screen.
